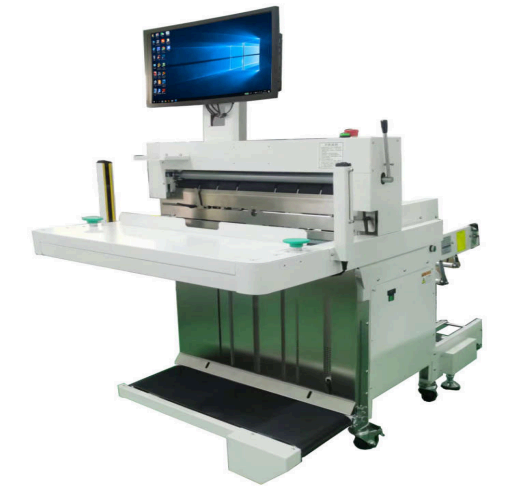

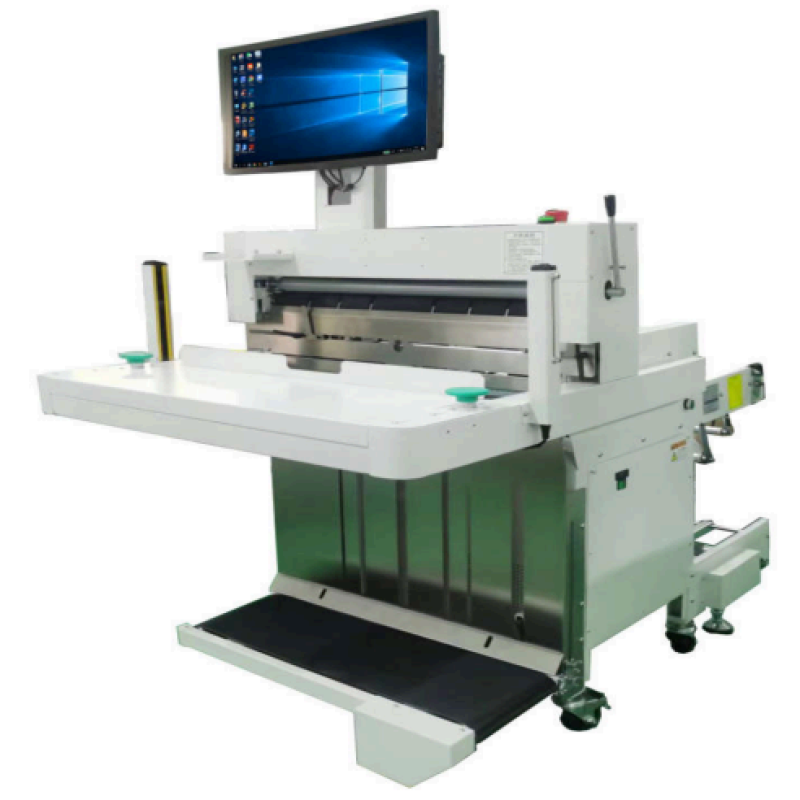

The YAP5070B is designed for efficient parcel packing with PE mailing bags, ideal for single-item or small mixed orders. After barcode scanning and product verification, the system prints and peels the shipping label through the built-in industrial printer, automatically applies it onto the bag, feeds out the next bag, and waits for item insertion. Once the operator places the goods and presses the start button, the bag is sealed and discharged via the bottom conveyor—delivering a fast, accurate, and standardized packaging process for e-commerce fulfillment centers.
| Item | Specification |
|---|---|
| Model | YAP5070B |
| Dimensions (L × W × H) | 1680 × 750 × 1700 mm |
| Weight | 258 kg |
| Power Supply | AC 220V 50–60Hz / AC 110V 50–60Hz (custom) |
| Power Consumption | Peak 1200W / Average 600W |
| Configuration | 24″ high-resolution display + 7″ touch screen |
| Printer | SATO Industrial Printer (Japan) |
| Communication | Ethernet, Wi-Fi |
| Bag Material | Pre-opened PE bags on a roll, thickness 0.03–0.10 mm, width 130–500 mm, length 260–800 mm |
| Label Format | Fan-fold shipping labels; length 70–180 mm, width 70–100 mm |
| Max. Seal Width | 600 mm |
| Sealing Speed | Up to approx. 1800 bags/hour |
| Packaging | Crate packaging: 1 × 0.87 × 1.05 m; G.W. 400 kg |
