| Specification | Component | Brand / Spec Notes | |
|---|---|---|---|
|
Model
|
SLP-DS02F
|
Heating Source
|
MEAN WELL DC Power Supply
|
|
Machine Dimensions (L×W×H)
|
650 × 700 × 650 mm
|
Sealing Blade
|
Nichrome Heating Wire
|
|
Bagging Size (Min.)
|
Length ≥ 80 mm, Width ≥ 40 mm
|
Sensor
|
Fiber Optic Sensor
|
|
Bagging Size (Max.)
|
Length ≤ 350 mm, Width ≤ 250 mm
|
Air Cylinder
|
-
|
|
Bag Film Thickness
|
0.04 – 0.12 mm (single layer)
|
Bag Detection Sensor
|
AI-controlled current-sensing sensor (patented design)
|
|
Bagging Speed
|
15-25 bags/min
|
Motor
|
Leadshine Stepper Motor
|
|
Net Weight
|
70 kg
|
Bearings
|
HER
|
|
Power Consumption
|
1 kW
|
Bag Roll Holder
|
Max. Ø250 mm
|
|
Power Supply
|
1PH 220V 50Hz
|
PLC Controller
|
Mitsubishi
|
|
Drive
|
Electromagnetic
|
HMI
|
FANYI
|
|
Compatible Film Type
|
PE pre-opened bag-on-roll
|
Software
|
Custom-configured control system
|

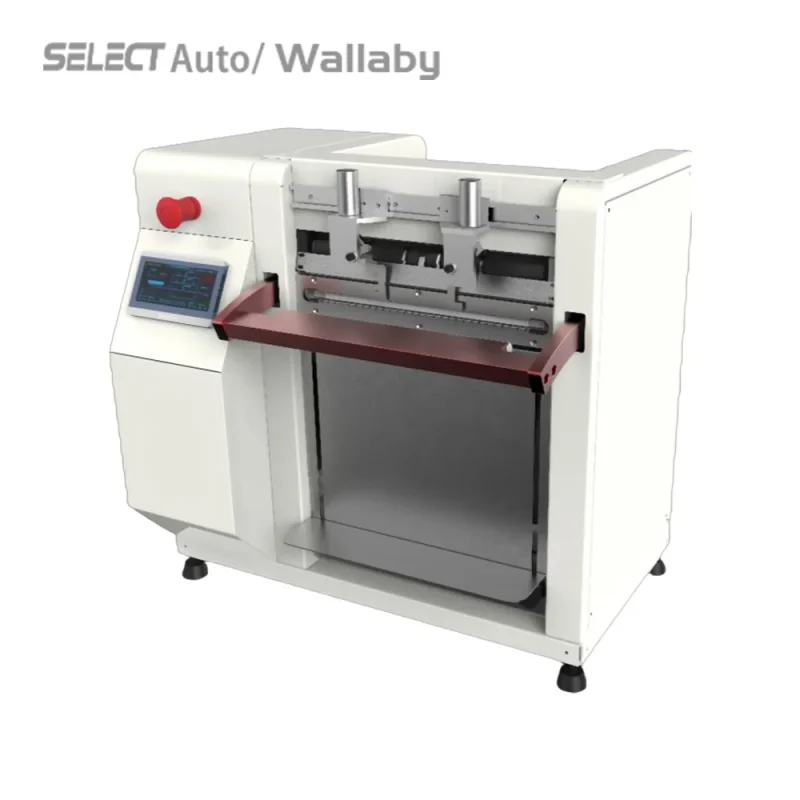

This clip demonstrates the semi-automatic operation of the WALLABY auto bagging machine (SLP-DS02F).
The operator manually inserts the cable and activates the sealing process using a foot pedal. Once sealed, the finished bag drops automatically, and the next pre-opened bag advances into position for the next cycle. The video also highlights the consistent, flat sealing finish produced at the end of each cycle.
