| Specification | Component | Brand / Spec Notes | |
|---|---|---|---|
|
Model
|
SLP-DS02E/03E
|
Heating Source
|
DC Power Supply
|
|
Machine Dimensions (L×W×H)
|
L650–750 × W750 × H950–1150 mm
|
Sealing Blade
|
Nichrome Heating Wire
|
|
Bagging Size (Min.)
|
Length ≥ 80 mm, Width ≥ 50 mm
|
Sensor
|
Light Curtain
|
|
Bagging Size (Max.)
|
Length ≤ 500 mm, Width ≤ 250 mm
|
Air Cylinder
|
SMC / AIRTAC
|
|
Bag Film Thickness
|
0.04 – 0.10 mm (single layer)
|
Bag Detection Sensor
|
AI-controlled current-sensing sensor (patented design)
|
|
Bagging Speed
|
6-15 bags/min
|
Motor
|
Leadshine Stepper Motor
|
|
Net Weight
|
85-100 kg
|
Bearings
|
HER
|
|
Power Consumption
|
1 kW
|
Bag Roll Holder
|
Max. Ø250 mm
|
|
Power Supply
|
1PH 220V, 50Hz
|
PLC Controller
|
Mitsubishi
|
|
Air Supply Requirement
|
0.4 MPa, 0.05 m³/min
|
HMI
|
FANYI
|
|
Compatible Film Type
|

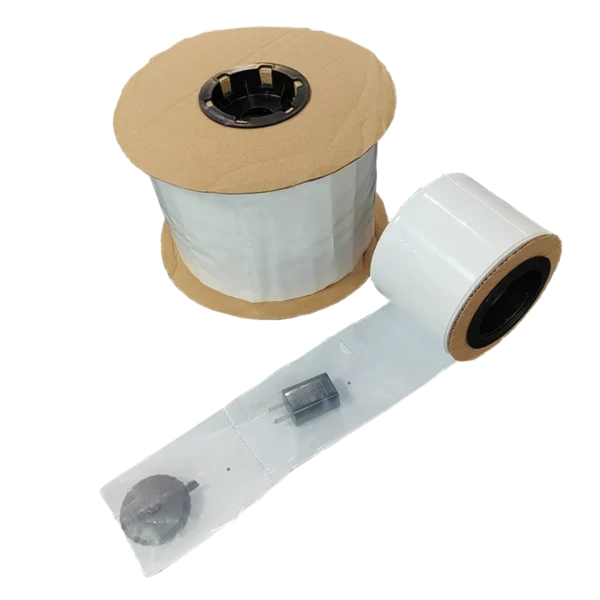

PE pre-opened bag-on-roll
|
Software
|
Custom-configured control system
|

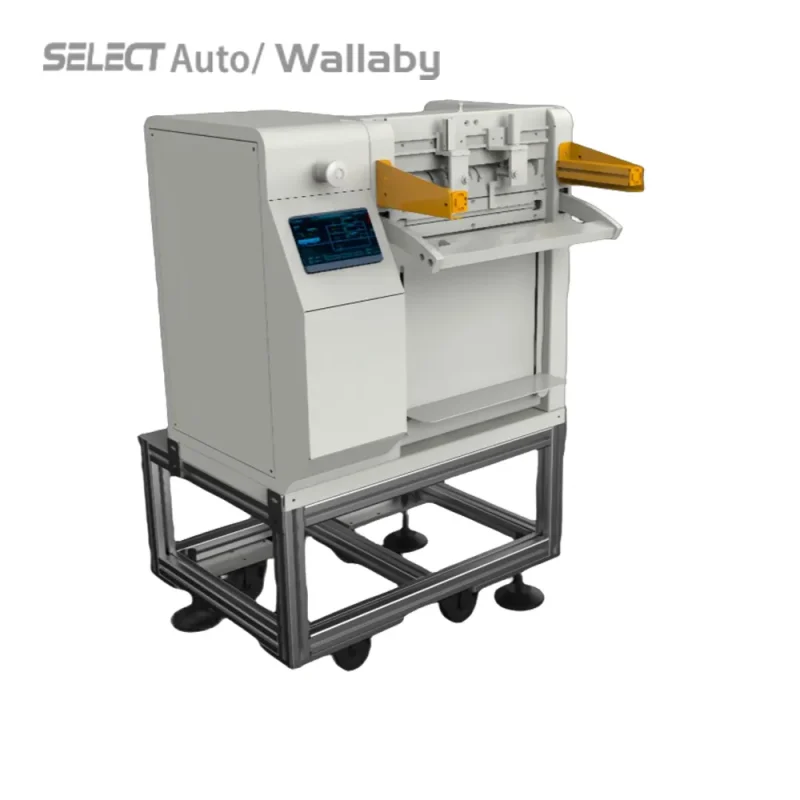

In this video, the Sensor-triggered autobagger machine (SLP-DS02E/03E) is shown with a labeling module for a fully streamlined workflow.
Here’s how it works:
1️⃣ The machine applies a label to the bag
2️⃣ Automatically feeds and opens a pre-opened bag using air
3️⃣ Operator drops the product into the open bag
4️⃣ Once the bag is filled, the machine senses it — and automatically seals, cuts, and advances the next bag
No need to press a bar or step on a pedal. Just drop the product and the system takes care of the rest.
