| Specification | Component | Brand / Spec Notes | |
|---|---|---|---|
|
Model
|
SLP-DS02C/03C
|
Heating Source
|
DC Power Supply
|
|
Machine Dimensions (L×W×H)
|
L650–750 × W750 × H1100-1300 mm
|
Sealing Blade
|
Nichrome Heating Wire
|
|
Bagging Size (Min.)
|
Length ≥ 80 mm, Width ≥ 50 mm
|
Sensor
|
Fiber Optic Sensor
|
|
Bagging Size (Max.)
|
Length ≤ 500 mm, Width ≤ 250 mm
|
Air Cylinder
|
SMC / AIRTAC
|
|
Bag Film Thickness
|
0.04 – 0.10 mm (single layer)
|
Bag Detection Sensor
|
AI-controlled current-sensing sensor (patented design)
|
|
Bagging Speed
|
8-25 bags/min
|
Motor
|
Leadshine Stepper Motor
|
|
Net Weight
|
100-120 kg
|
Bearings
|
HER
|
|
Power Consumption
|
1.5 kW
|
Bag Roll Holder
|
Max. Ø250 mm
|
|
Power Supply
|
1PH 220V, 50Hz
|
PLC Controller
|
Mitsubishi
|
|
Air Supply Requirement
|
0.4 MPa, 0.05 m³/min
|
HMI
|
FANYI
|
|
Compatible Film Type
|
PE pre-opened bag-on-roll
|
Software
|
Custom-configured control system
|
|
Label Size
|
L150 x W100 mm
|

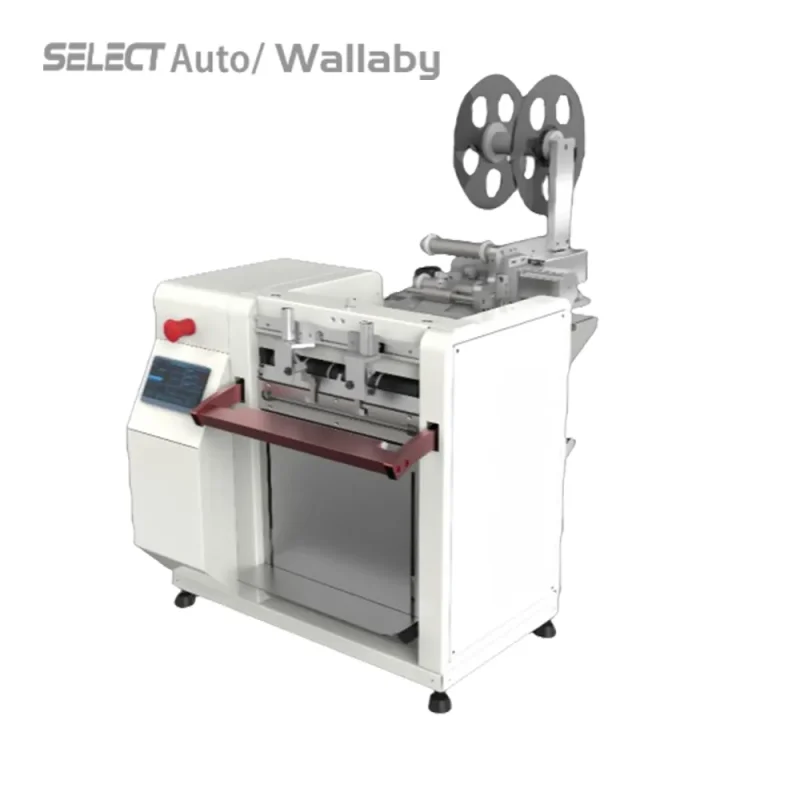

Each bag is first labeled automatically before being dispensed. The operator then inserts the tubing into the pre-labeled, pre-opened bag and lightly presses the front sealing bar to start the heat-sealing process. After sealing, the filled bag drops automatically, and the next bag is fed forward. An integrated air blower opens the new bag mouth, enabling a smooth and continuous packing cycle.
The system supports pneumatic (SLP-DS02A/03A) and electromagnetic (SLP-DS02F) drive options, running at 8–25 bags per minute depending on the material and cycle time. It’s ideal for long-format components such as electronic tubes, wires, hoses, labels, or medical tubing.
Optional features—like custom infeed guides, thermal transfer printers, and label applicators—enhance automation and traceability. This makes it a smart solution for small-batch runs in electronics, medical devices, or auxiliary packaging lines.
