Input: Kraft Roll
200–500 mm wide, up to 80 gsm, with a 75 mm core.

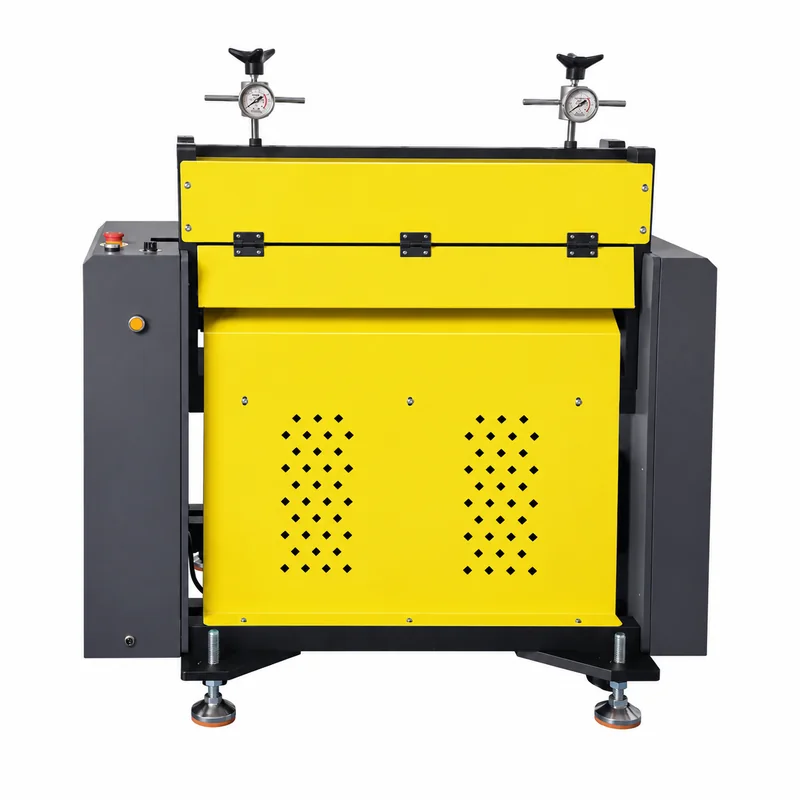

HM50-M Honeycomb Paper Die-Cutting Machine

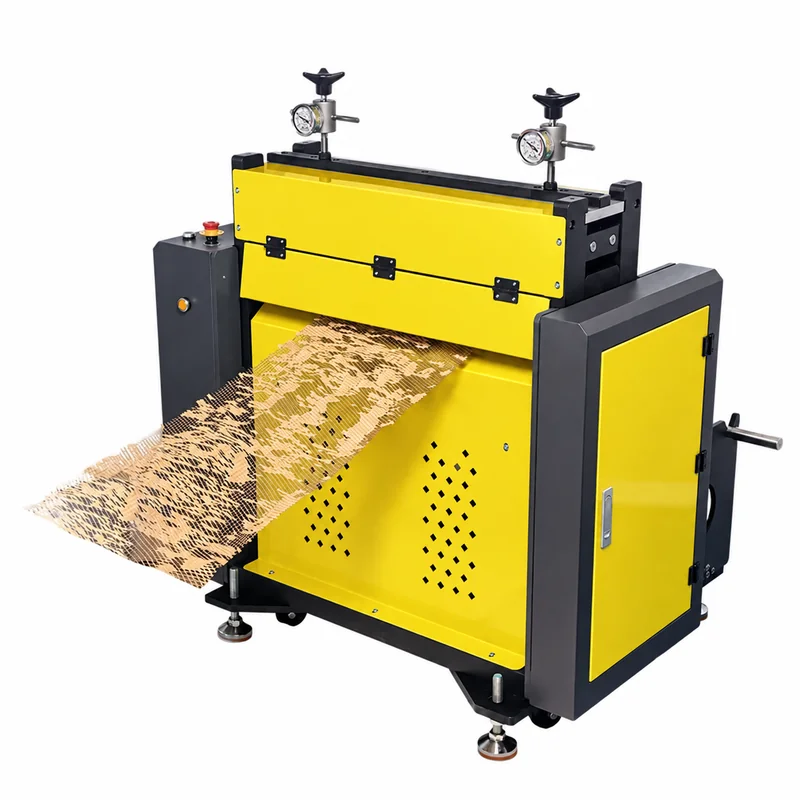

Convert kraft paper rolls into expandable honeycomb wrapping paper with the HM50-M die-cutting machine. The HM50-M has a die-cutting width of 200–500 mm at a die-cutting speed of 5–18 m/min for packaging material production and in-house packing operations.
HM50-M Technical Specifications
Core machine specifications and paper requirements for equipment selection.- Model
- HM50-M
- Die-cutting speed
- 5–18 m/min
- Die-cutting width
- 200–500 mm
- Paper weight
- ≤80 gsm
- Rated power
- 1.5 kW
- Maximum roll diameter
- 500 mm
- Roll core inner diameter
- 75 mm
- Nominal machine dimensions (L × W × H)
- 950 × 1150 × 1260 mm
- Net / gross weight
- 502 / 552 kg
- Electrical supply
- Voltage and frequency to be confirmed for your destination
Speed refers to paper die-cutting, not finished packages per minute. Confirm the installation drawing, loading clearance and electrical configuration before ordering.
Project evaluationCheck your paper specification and required output with our team.
Request a Technical ReviewPaper Feed and Die-Cutting Controls
Review the actual machine layout before planning your production station. Roll loading, pressure adjustment and access to the cutting mechanism are part of the equipment assessment.

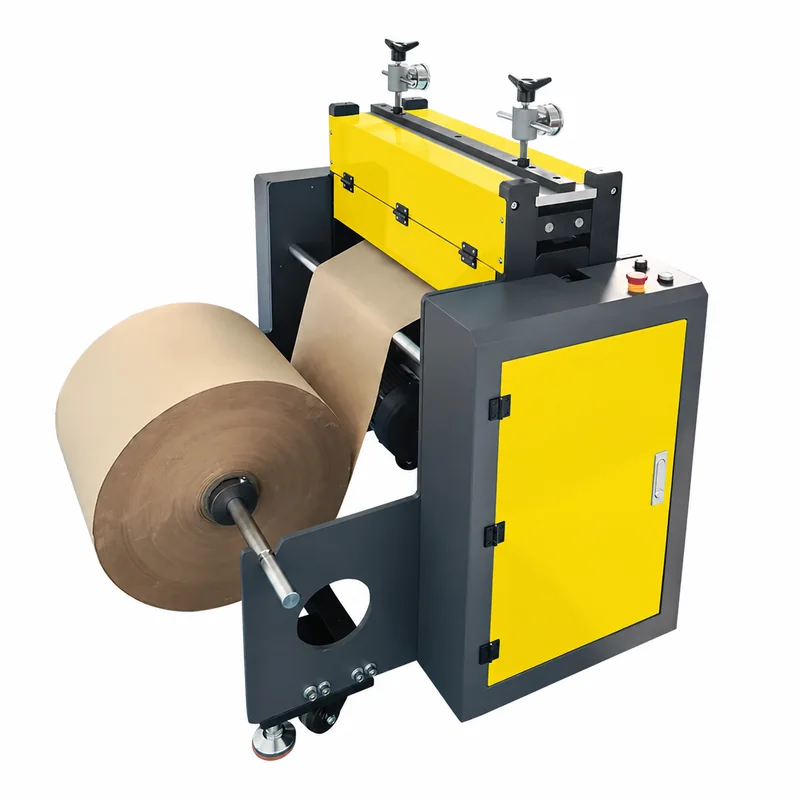

Kraft Roll Loading
The rear roll holder accepts a 75 mm inner core and a maximum roll diameter of 500 mm. Match the incoming roll width and paper weight to the machine specification.

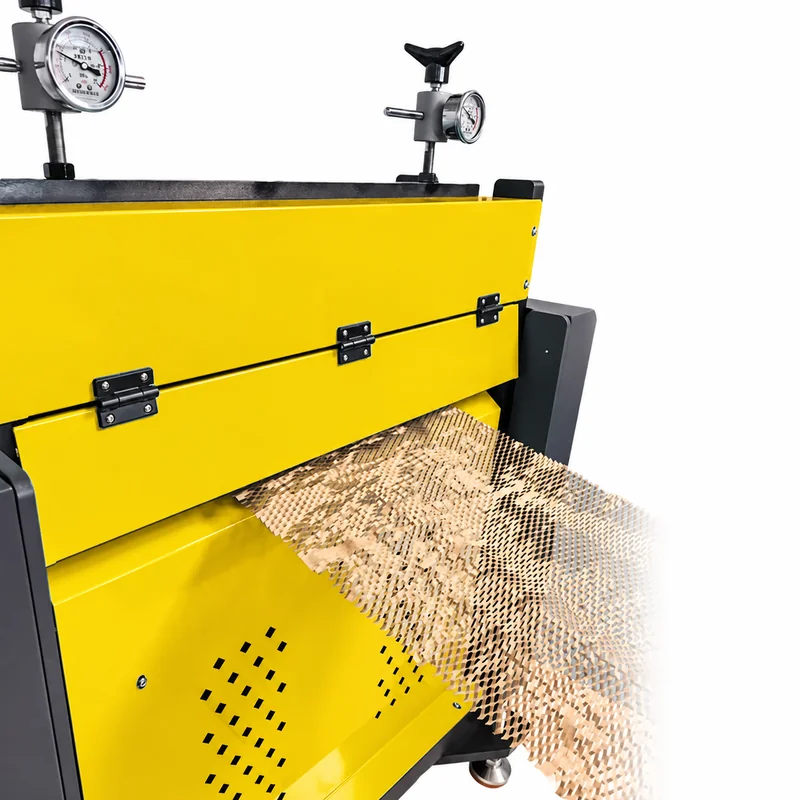

Pressure and Output Control
Dual pressure gauges and adjustment handles are positioned above the paper outlet. The operating controls include start/stop, speed adjustment, manual jog and an emergency stop.
Start with the Right Kraft Paper
Paper selection affects feeding, die-cutting and the resulting honeycomb structure. Review your intended material before committing to a production configuration.
Output: Expandable Honeycomb Paper
Die-cut kraft paper that opens into a honeycomb structure when stretched for wrapping.
Die-Cutting and Dispensing Are Different Tasks
The HM50-M die-cuts kraft paper. Expansion, dispensing and product wrapping are subsequent steps. Review those steps separately when specifying a complete packing station.
Plan the Complete Packing Station

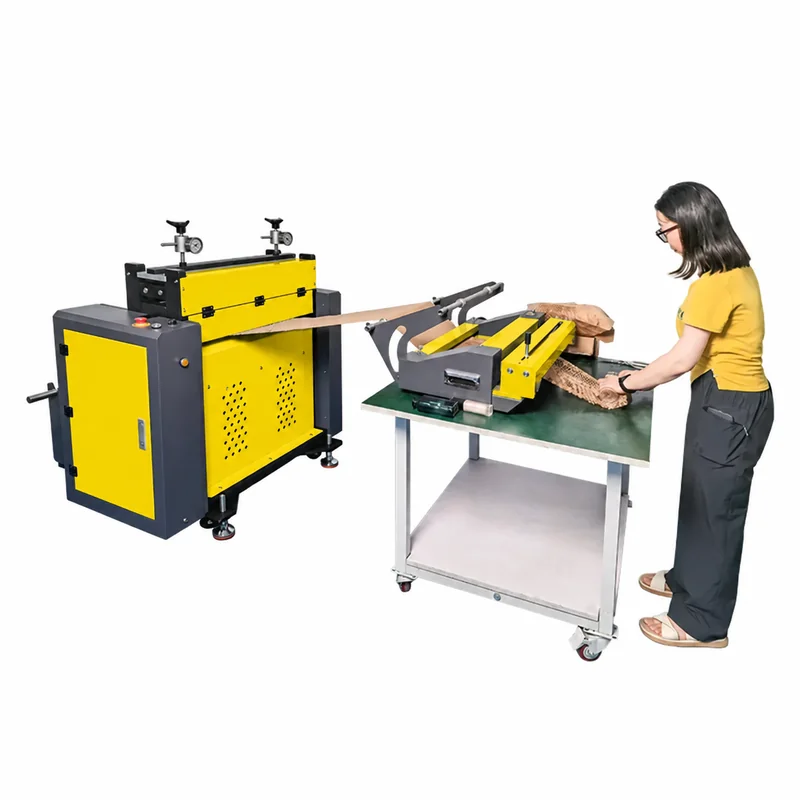

For in-house wrapping, consider how operators will move the die-cut paper from the machine to the packing table. The example below shows the HM50-M with separate downstream equipment.
Configuration example. The separate feeder, table and other accessories shown are subject to the agreed quotation and are not stated as standard HM50-M inclusions.
Configuration reviewShare your station layout and expected paper consumption.
Discuss Your ConfigurationAbout SelectPack
Discuss HM50-M Supply with SelectPack

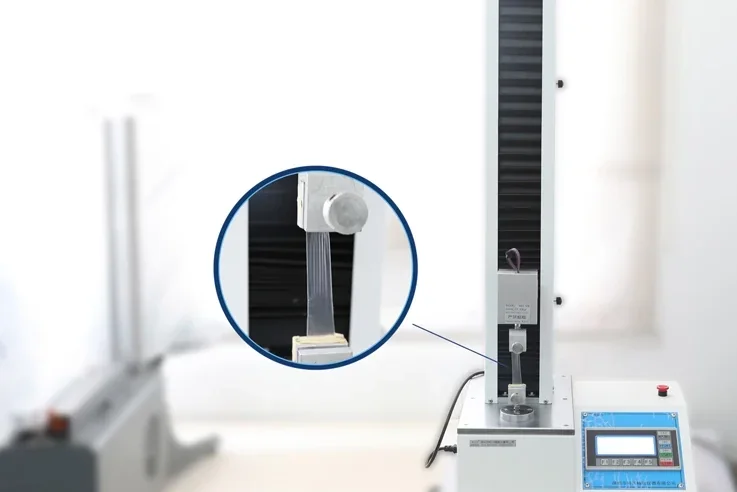

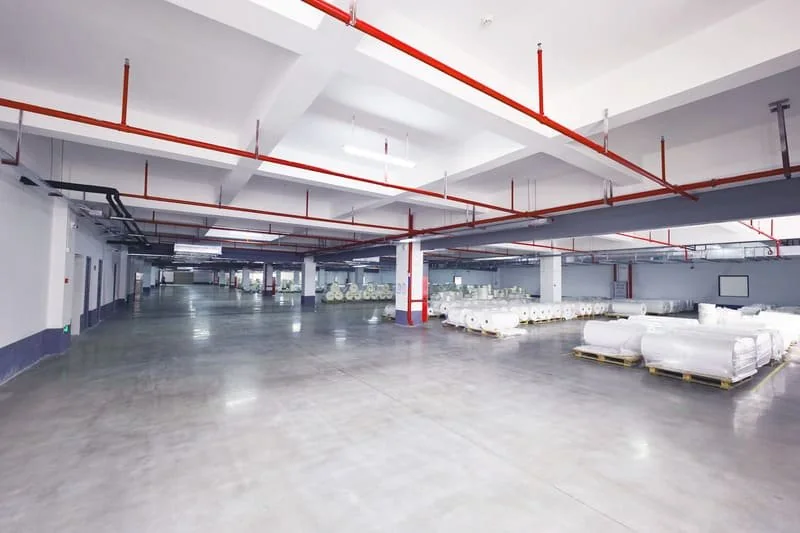

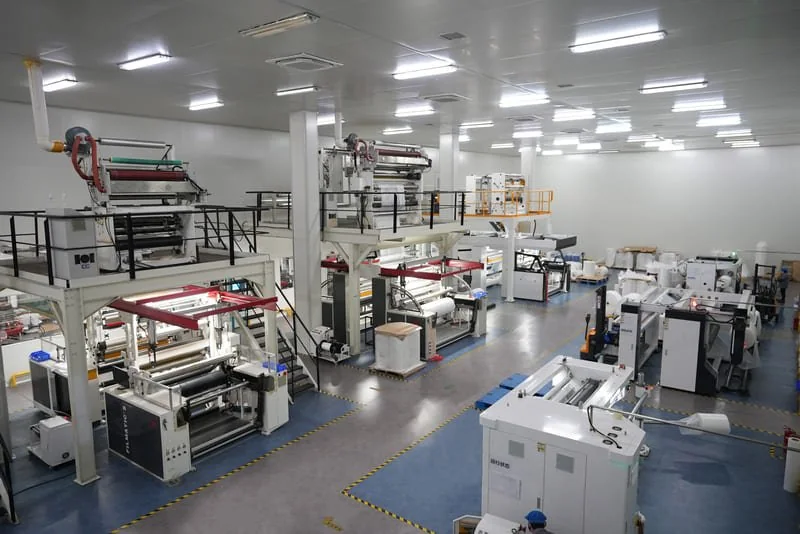

Contact SelectPack with your HM50-M requirements, paper specifications and delivery destination. Confirm the machine configuration, scope of supply and any requested branding in the quotation. The facility images below are company references, not documentation of HM50-M production.
01
Machine Requirements
Provide the required quantity, paper specification and intended operation. Confirm the HM50-M configuration and inspection requirements before ordering.
02
Branding & Configuration Enquiries
Include any requested branding or configuration changes in your enquiry. Availability for the HM50-M must be confirmed separately.
03
Project Supply Planning
Confirm the required quantity, configuration and delivery destination with our team. Availability and lead time are specified in the quotation.
04
Delivery Requirements
Provide the delivery destination and installation requirements. Confirm packing, shipping and any requested support in the quotation.
Distributor partnerships
Add Honeycomb Paper Equipment to Your Product Portfolio
Discuss HM50-M supply for your market with SelectPack. Review the paper requirements, machine configuration and downstream equipment your customers need.
Tell us about your market. Include your customer industries, expected order quantity, service capability and delivery destination when requesting a proposal.
Discuss a Distributor PartnershipFAQ
Key points to confirm when specifying an HM50-M for your operation.
Does the HM50-M make honeycomb paper or only dispense it?
The HM50-M is a honeycomb paper making machine that die-cuts kraft paper rolls to create expandable paper for protective wrapping. A honeycomb paper dispenser handles paper that has already been cut. Expansion and product wrapping follow the die-cutting stage.
What paper can the machine process?
The supplied specifications list a paper width of 200–500 mm, a paper weight of up to 80 gsm, a maximum roll diameter of 500 mm and a 75 mm core inner diameter. Submit your intended paper specification for review.
Is the separate feeder and packing table included?
The workstation image is a configuration example. Confirm the machine, downstream equipment, accessories and installation scope in the quotation.
Which electrical configuration should I specify?
Provide the installation country, supply voltage and frequency. The supplied documents list different electrical ranges, so the final configuration must be confirmed before ordering.
What information is needed for a quotation?
Provide the destination country, quantity, paper width and gsm, roll dimensions, required output and intended wrapping workflow. Include any distributor or branding requirements for review.
