| Specification | Component | Brand / Spec Notes | |
|---|---|---|---|
|
Model
|
SLP-DS02D/03D
|
Heating Source
|
DC Power Supply
|
|
Machine Dimensions (L×W×H)
|
L650-750 × W750 × H1100-1300mm
|
Sealing Blade
|
Nichrome Heating Wire
|
|
Bagging Size (Min.)
|
Length ≥ 80 mm, Width ≥ 50 mm
|
Sensor
|
Fiber Optic Sensor
|
|
Bagging Size (Max.)
|
Length ≤ 500 mm, Width ≤ 250 mm
|
Air Cylinder
|
SMC / AIRTAC
|
|
Bag Film Thickness
|
0.04 – 0.10 mm (single layer)
|
Bag Detection Sensor
|
AI-controlled current-sensing sensor (patented design)
|
|
Bagging Speed
|
8-20 bags/min
|
Motor
|
Leadshine Stepper Motor
|
|
Net Weight
|
95 kg
|
Bearings
|
HER
|
|
Power Consumption
|
1.2 kW
|
Bag Roll Holder
|
Max. Ø250 mm
|
|
Power Supply
|
1PH 220V, 50Hz
|
PLC Controller
|
Mitsubishi
|
|
Air Supply Requirement
|
0.4 MPa, 0.05 m³/min
|
HMI
|
FANYI
|
|
Compatible Film Type
|
PE pre-opened bag-on-roll
|
Software
|
Custom-configured control system
|
|
Print Area
|
W53-128 x L150-200 mm
|
Ribbon
|
TTO Ribbon (Thermal Transfer Ribbon)
|
Continuous printing, uninterrupted flow.

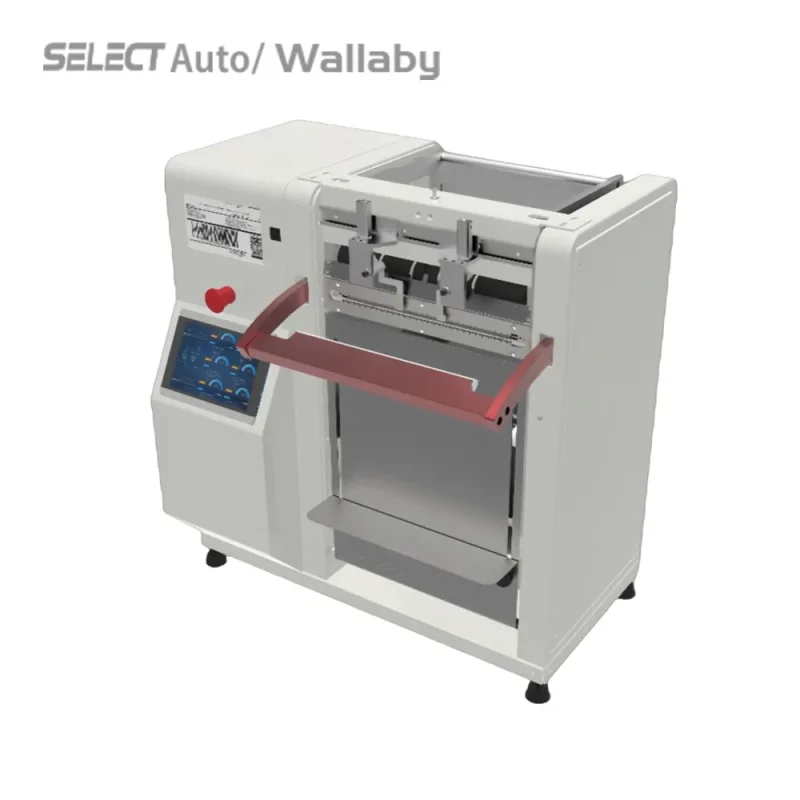

This video shows the SelectAuto/Wallaby SLP-DS02D/03D auto bag machine equipped with continuous thermal transfer printing, applying real-time batch codes, barcodes, or branding directly onto the moving film as each bag feeds through.
Ideal for operations that need high-speed inline printing—without slowing down the bagging process.
