| Specification | Component | Brand / Spec Notes | |
|---|---|---|---|
|

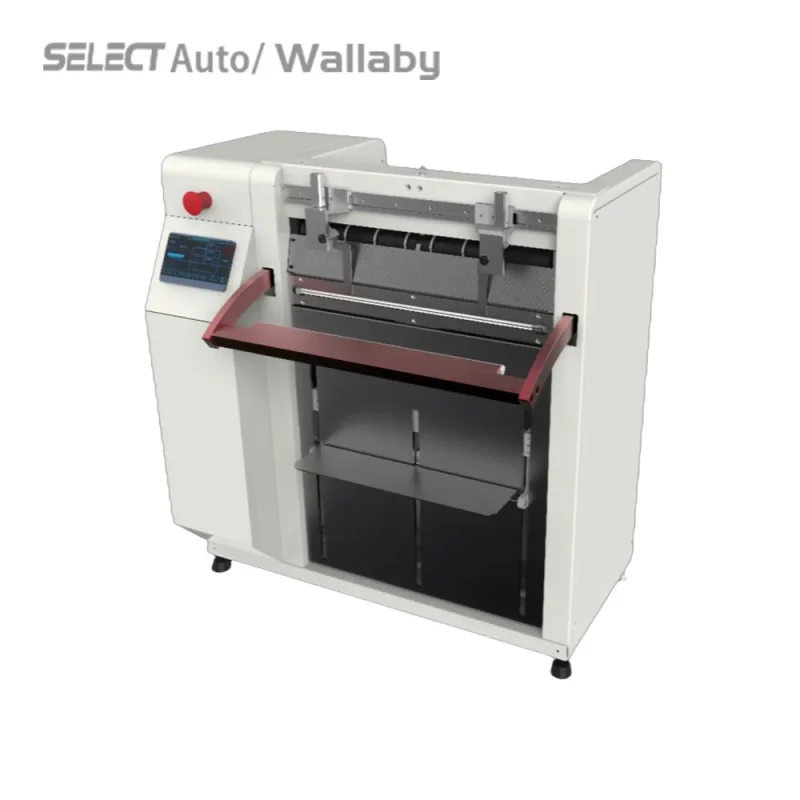

Model
|
SLP-DS03A
|
Heating Source
|
DC Power Supply
|
|
Machine Dimensions (L×W×H)
|
750 × 750 × 950 mm
|
Sealing Blade
|
Nichrome Heating Wire
|
|
Bagging Size (Min.)
|
Length ≥ 150 mm, Width ≥ 100 mm
|
Sensor
|
Fiber Optic Sensor
|
|
Bagging Size (Max.)
|
Length ≤ 500 mm, Width ≤ 350 mm
|
Air Cylinder
|
SMC / AIRTAC
|
|
Bag Film Thickness
|
0.04 – 0.10 mm (single layer)
|
Bag Detection Sensor
|
AI-controlled current-sensing sensor (patented design)
|
|
Bagging Speed
|
8–10 bags/min
|
Motor
|
Leadshine Stepper Motor
|
|
Net Weight
|
95 kg
|
Bearings
|
HER
|
|
Power Consumption
|
1 kW
|
Bag Roll Holder
|
Max. Ø250 mm
|
|
Power Supply
|
1PH 110–220V, 50–60Hz
|
PLC Controller
|
Mitsubishi
|
|
Air Supply Requirement
|
0.4 MPa, 0.05 m³/min
|
HMI
|
FANYI
|
|
Compatible Film Type
|
PE pre-opened bag-on-roll
|
Software
|
Custom-configured control system
|
This video demonstrates the SelectPack auto bag machine in use for packaging a pacifier with CPE pre-opened bag rolls.
The operator places the pacifier into the open bag, then lightly pushes the front bar to trigger the sealing cycle. The machine performs heat sealing and cutting in one step. Only after sealing is complete does the next bag automatically advance and open—ready for the next item.
The completed package is shown with a flat, consistent seal and a clean cut, making it suitable for consumer-facing products.
