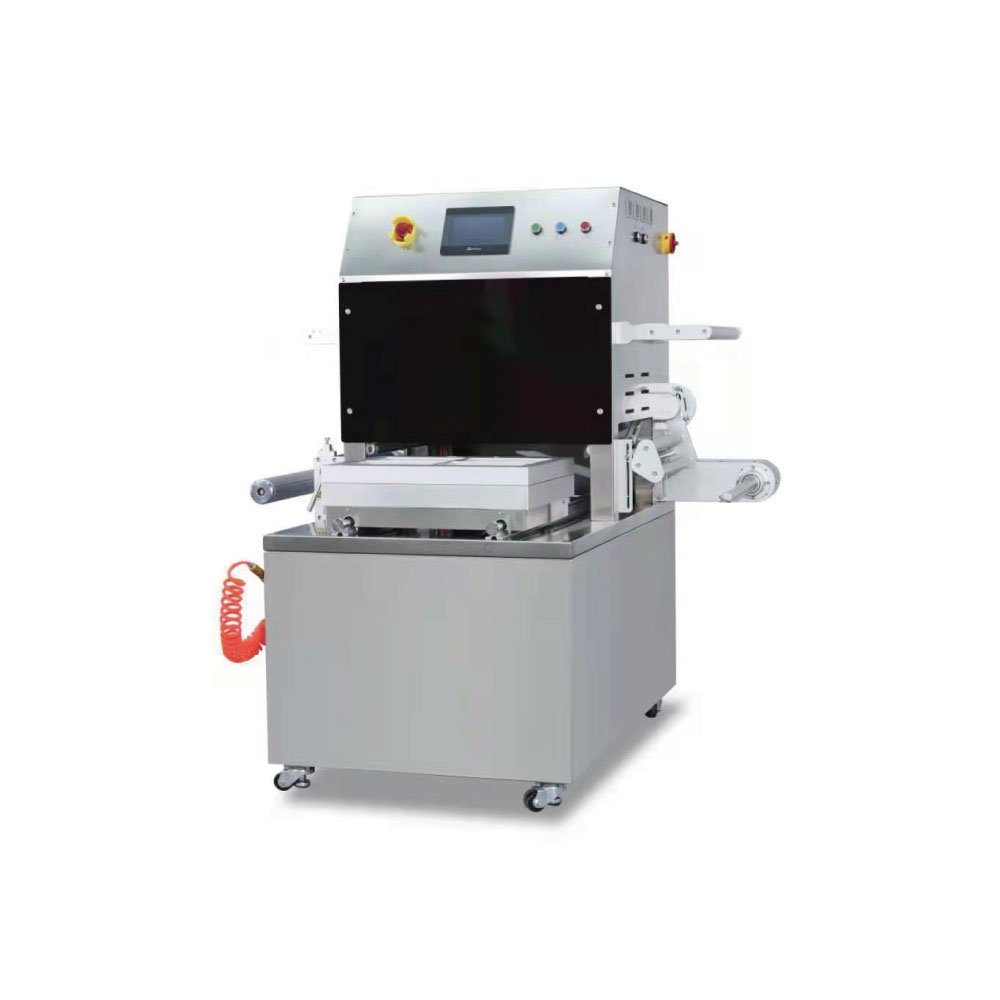

Semi-automatic Tray Sealer SP-Food:P580

This semi-automatic tray sealer is mainly used for fresh, chilled, frozen food package. It has very compact design with bottom die working like drawer. It is the best choice for small batch production. It can provide perfect packaging solutions for small food manufacturers, slaughterers and city packer.

Bottom die is driven by pneumatic, and the film unwinding and winding is automatic after sealing in every cycle. The process of modified atmosphere packaging is that the air around the product is extracted by the vacuum pump after the lower and upper dies are closed, and then the protective gas is flushed in, so as to enhance the color of the product and extend the shelf life.

Key Features of Semi-automatic Tray Sealer SP-Food:P580

Quick tooling change design, easy to operate.
It is suitable for sealing all kinds of film and tray including laminate film, tray made by PP, PET, PS.
The control system uses programmable logic controller (PLC), and the parameters can be set and modified through the touch screen, which makes operation flexible and easily.
The frame, protective covers and doors are made of SUS304 food grade stainless steel, which is easy to clean.
The sealing pressure, temperature, time and other parameters can be accurately controlled to reach the beat sealing result.
The millimeter level photoeye sensor correctly positions registered printed top film, which ensure pattern in the middle of the package.

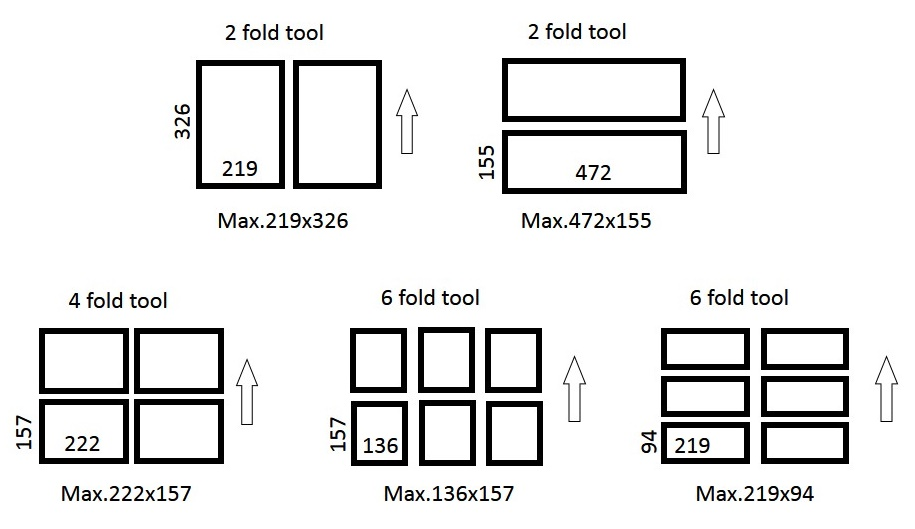

The sealing die can be customized according to tray.
The whole machine is designed according to CE standard and uses international famous brand electrical components, so it runs safely and reliably.

Machine Components Material and Brand Specifications Summary

Technical Data

Machine Name	Semi-automatic Tray Sealer
Model	KK580
Drive	Pneumatic & Motorized
Max. Film Roller Width（mm)	430mm
Max. Film Roller Diameter（mm）	250mm
Tray Size	Customized
Packing Speed(cycle/min)	3～ 6cycle/min. Depending on product, parameter of vacuum and gas flushing etc.
Air Replacement	≧99.5%
Gas mixer accuracy	±2%
Electrical Voltage	AC 380 V/50Hz 10A
Compressed Air	0.6 ～ 0.8 MPa
Installed Power	4.5 kW

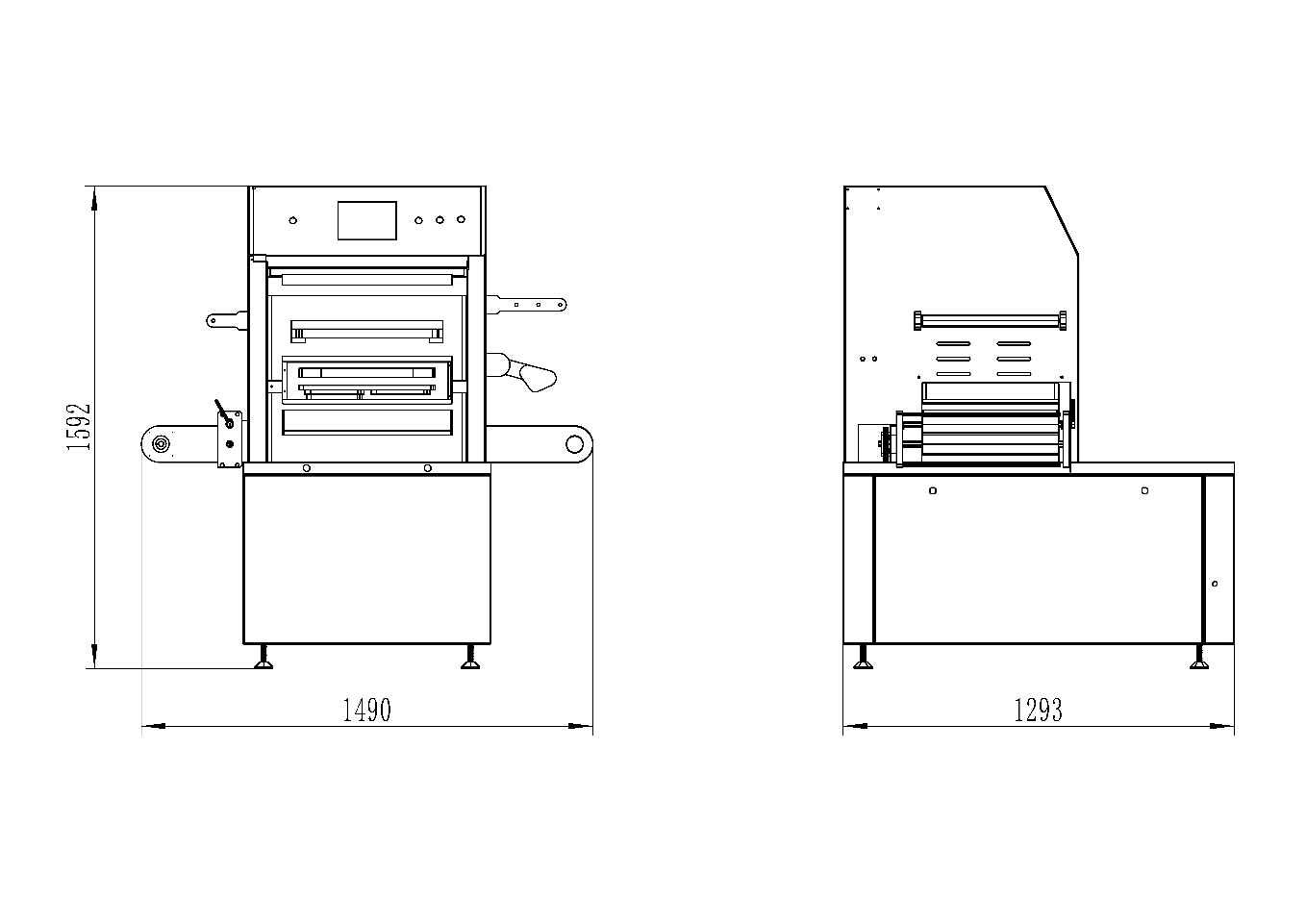

Machine Size(mm)	140015001700
Weight(kg)	500 kg

**Technical Data of Semi-automatic Tray Sealer SP-Food:P580

Equipment Parts and Brands Overview

Tooling	Anodized Aluminum Alloy
Cutting	SS304 Customized
Pneumatic Part	Airtac
PLC	Mitsubishi
Temperature Controller	Mitsubishi
Pressure Measurement	Panasonic
Electrical Parts	Schneider
Vacuum Pump	Busch100
Gas Mixer	MOCON from Denmark
Motor	STS(Taiwan)
Real time fault prompt	With
interface to die change	With
Frame	SS304
