Semi-auto L Bar Sealer & Shrink Tunnel

Product Overview

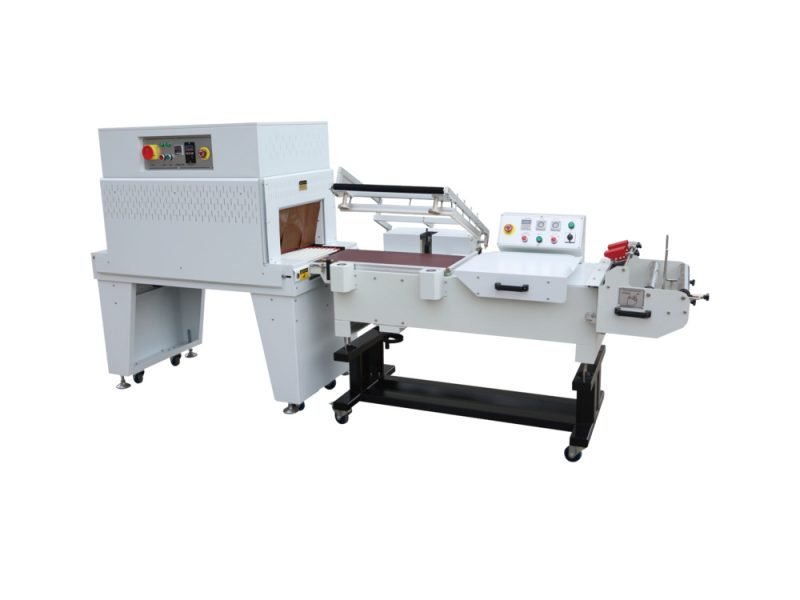

The SLPSF-20LG + SLPSF-4525 system consists of an L-bar sealer and a shrink tunnel. Products are manually sealed in an L-shape and then automatically conveyed into the shrink chamber to complete the shrink process.

Shrink Packaging Machine HS code: 8422303090

Download the Brochure Request A Quote

MODEL: SLPSF-20LG + SLPSF-4525

Technical Data

	Model	Power	Power Supply	Tunnel Height (LWH)	Max Packing Size	Max. Load Weight	Shrink Film	Table Height	Packing Speed	Machine Size (LWH)	Crate Size (LWH)	G.W./N.W.
Sealer	SLPSF-20LG	1 kW	220V 1/3PH 50/60Hz	/	L+H≤530mm W+H≤430mm H≤200mm	25kgs	POF, PE	750±25mm	0-10 packs/min.	1730 x 790 x 980mm	1780 x 820 x 1120mm	145/125 kg
Sealer	SLPSF-20LG/B	1 kW	220V 1/3PH 50/60Hz	Air source 6-8cm²	L+H≤530mm W+H≤430mm H≤200mm	25kgs	POF, PE	750±25mm	0-10 packs/min.	1730 x 790 x 980mm	1780 x 820 x 1120mm	145/125 kg
Sealer	SLPSF-30LG	2.6 kW	220V 1/3PH 50/60Hz	Air source 6-8cm²	L+H≤630mm W+H≤550mm H≤200mm	25kgs	POF, PE	750±25mm	0-10 packs/min.	1768 x 1030 x 980mm	1919 x 1080 x 1130mm	190/160 kg
Sealer	SLPSF050LG	3.8 kW	220V 1/3PH 50/60Hz	Air source 6-8cm²	L+H≤900mm W+H≤700mm H≤300mm	30kgs	POF, PE	750±25mm	0-10 packs/min.	2885 x 1220 x 1055mm	2905 x 1270 x 1205mm	359/320 kg
Sealer	SLPSF-60LG	4.2 kW	220V 1/3PH 50/60Hz	Air source 6-8cm²	L+H≤1100mm W+H≤800mm H≤300mm	35kgs	POF, PE	825±25mm	0-10 packs/min.	2655 x 1310 1890mm	2705 x 1360 x 2040mm	580/550 kg
Shrink Tunnel	SLPSF-4525	9 kW	AC380/220V 3PH 50/60Hz	1000 x 450 x 250mm	1000 x 300 x 200mm	25kgs	POF, PE	825±25mm	0~10 packs/min.	1300 x 720 x 1500mm	1580 x 770 x 1105mm	235/215 kg

*Tunnel with cooling fan is recommended for PE shrink film.

Features

The system consists of an L-bar sealer and a shrink tunnel. Products are manually sealed in an L-shape and then automatically conveyed into the shrink chamber to complete the shrink process.
The sealing blade is made from a high-temperature resistant alloy with anti-stick properties. It delivers clean, durable seals without cracking, burning, or producing smoke. A Teflon coating prevents film build-up.
A handwheel allows easy adjustment of the conveyor height for different product sizes.
Sealing time is precisely controlled via a timer relay to ensure consistent packaging quality.
The sliding film holder supports various shrink film sizes, and the perforation unit ensures smooth film feeding.
In the SLPSF-20LG/B model, sealing is fully driven by air cylinders, reducing manual effort and improving overall production efficiency.
