Pre-stretch Pallet Wrapping Machine Python

The SelectAutomation/Python SLPYK1650F is an advanced pre-stretch pallet wrapping machine designed for efficient, safe, and reliable packaging across diverse cargo types. Utilizing intelligent PLC controls, it automatically detects cargo height and allows precise adjustment of wrap layers, film tension, and rotation speeds. Its rugged turntable construction and independently driven pre-stretch system ensure consistent wrapping quality, minimize film consumption, and signifi cantly enhance overall packaging efficiency
Download the brochure
Request A Quote

Key Features of Pre-stretch Pallet Wrapping Machine Python

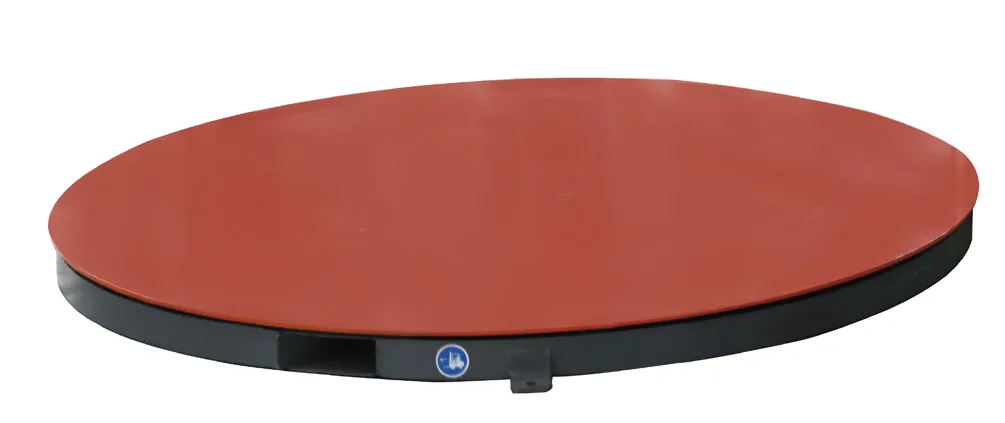

Turntable Drive System

  • Durable 80-tooth gear mechanism designed for reduced wear, lower noise levels, and increased load-bearing capacity.
  • Adjustable rotation speed (0-12 rpm) via frequency inverter.
  • Smooth acceleration and deceleration with automatic reset for enhanced operational reliability.
  • Premium carbon steel turntable designed for longevity under continuous use.

Film Delivery System

  • Independently adjustable film carriage ascent and descent speeds for precise film application.
  • Frequency-controlled film dispensing speed provides precise, stable, and convenient stretch control for optimal wrapping performance.
  • Adjustable wrap counts at the top and bottom for customized wrapping needs.
  • Film guiding mechanism suitable for various film types, providing versatile application.
  • Pure carbon steel film carriage construction offers stable and robust performance.
  • Wear-resistant rollers significantly extend operational life and maintain consistent film delivery quality.
  • Stable lifting structure: Chain-driven lifting column ensures smooth and reliable performance.

Thinking About Upgrading Your Wrapping Line?

Thinking About Upgrading Your Wrapping Line?
The SelectAuto/Python (SLP1650F) is built for modern warehouses looking to improve speed, consistency, and film savings. With automatic height detection, Siemens smart control, and a rugged turntable, this pre-stretch pallet wrapper handles demanding loads with ease. It’s time to upgrade your wrapping efficiency—with reliability you can count on.

Get a Free Quote Today

Technical Specs of Pre-stretch Pallet Wrapping Machine Python

Machine Specification

Pallet Size1200mm x 1200mm
Max Wrapping Height2000mm / 78.5” (Including pallet height)
Product Weight1000kg / 2204.5lbs.
Max Load Weight1500kg / 3307lbs.
Turntable Diameter1650mm / 65”
Turntable Height80mm/3.15’’
Machine Dim. ( LxWxH )2750*1650*2350mm / 108″×65″×92.5″
Packaging Dim. (LxWxH)2750x1740x720mm / 108″ × 68.5″ × 28.35″
Machine WeightAbout 550kg / 1212.5lbs.

Performance & Power Requirements

Turntable Speed0-12 RPM
Production Speed20-25 pallets per hour
Suitable Stretch FilmLLDPE film, Width 500mm, Thickness 18-25μm, Core Dia. 76mm, O.D.≤220mm
Stretch Rate200%~250%
PowerAC220V / 50Hz, 1Ph
Total PowerAbout 1.32KW

Key Components Configuration

ComponentBrand
PLCSiemens
InverterSiemens
Touch ScreenSiemens
Position SwitchDelixi
Photoelectric SwitchP+F
Proximity SwitchPhoenix
Turntable MotorZD
Lift System MotorMycro
Film Carriage MotorZD
