Mobile Strapping Machine – Elephant

Product Overview

Built for fast and labor-saving strapping, SelectSupport/Elephant combines an advanced chain track and a patented strap feeding mechanism. It helps the operator quickly loop the strap around palletized goods and place it into the strapping head for tensioning, sealing, and cutting—no bending required.

Strapping Machine HSCODE: 8422400090

Download the Brochure Get A Distributor Quote

Specification of Mobile Strapping Machine – Elephant

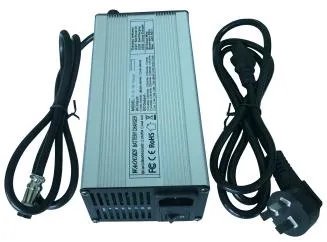

Charger x 1

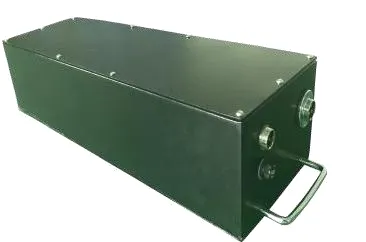

Battery x1
Tool Box x1
- User manual x 1 pc
- Screwdriver x 2 pcs
- Open-end wrench x 1 set (5pcs)
- Allen Wrench x 1 set
- Screws x 6 pcs
- Bolt x 1 pc
- FeedLance Chain Link Units x1 set (6pcs)

screws x 6 pcs

screwdrivers x 2 pcs

Open-end Wrench x 1 set

FeedLance Chain Links x 6 pcs

User Manual x1

Charger x 1

Bolt x1

Battery x 1

Allen wrench x1 set

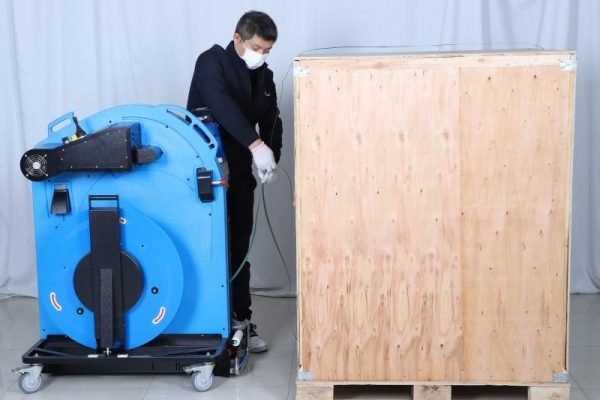

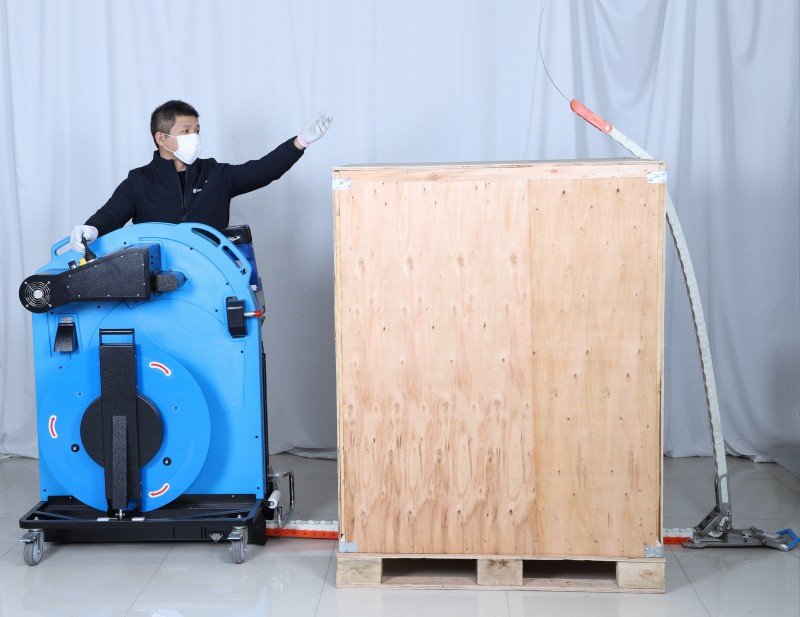

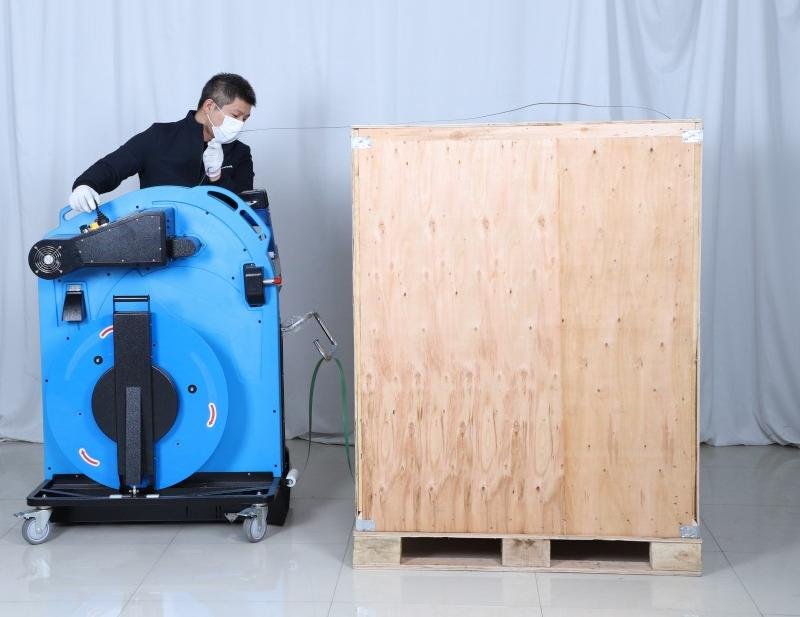

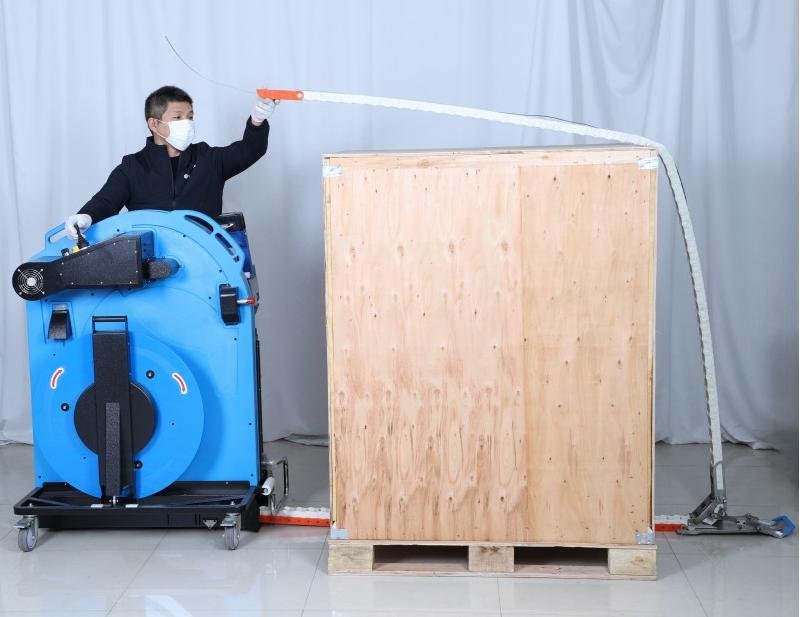

Innovative Chain Track System: Strap automatically loops under the load and returns to the operator.

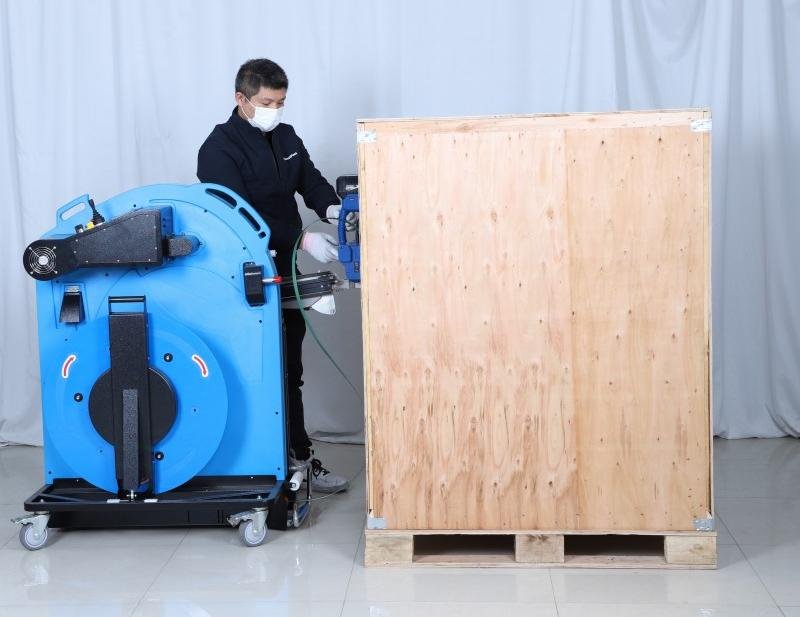

Semi-Automated Strapping Process: Operator places the strap into the strapping head, which performs tensioning, sealing, and cutting.
Ergonomic & Labor-Saving Design: No bending required; reduces operator fatigue and supports efficient one-person operation.
Patented Fast-Feed Mechanism: Strapping cycle averages under 10 seconds (depending on load size); lithium battery powers 500–600 cycles per charge.
Touchscreen Control Panel: Quickly adjust strap feeding settings through a simple, intuitive interface

Item	Specification
Brand	SelectPack
Model	SelectSupport/Elephant
Dimensions	950 × 750 × 1250 mm
Weight	105 kg (excluding strapping head)
Strap Material	PP / PET
Strap Width	12–19 mm
Strap Thickness	0.6–1.3 mm
Chain Length	9300 mm
Operating Voltage	DC 23.6–28.8 V

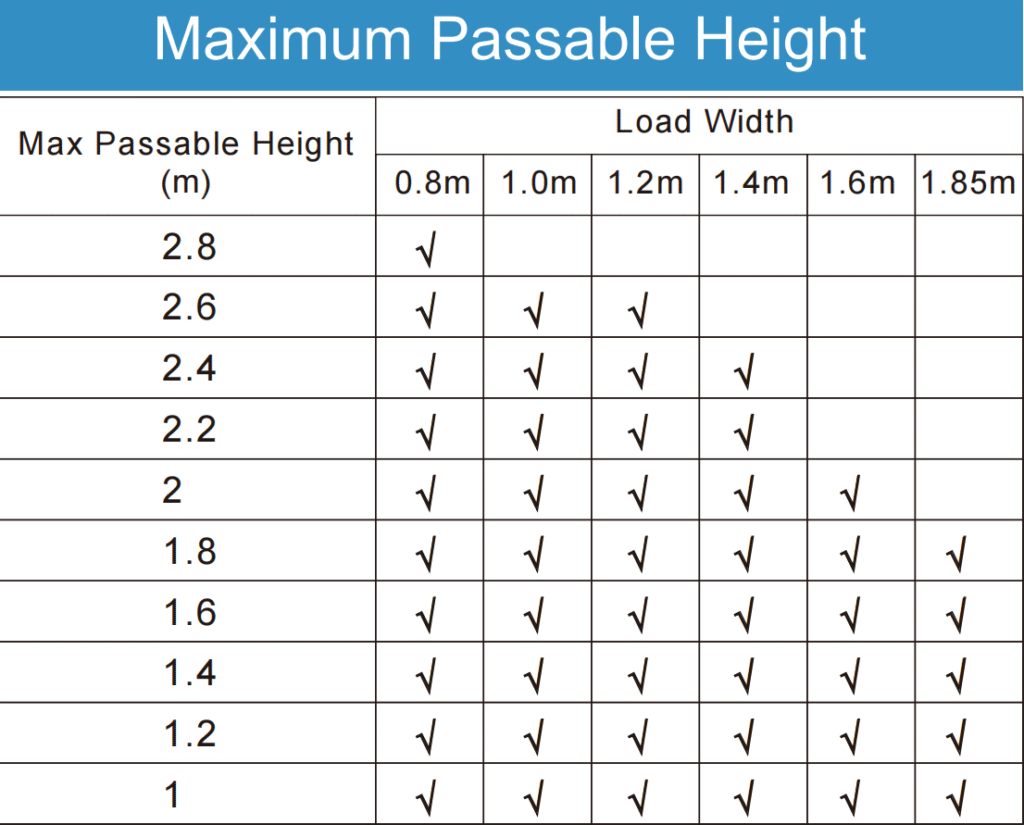

Max. Pallet Load Size	Width ≤ 1.85 m, Height ≤ 2.8 m
Strapping Cycles per Charge	Approx. 500 straps
Max Chain Thrust	320 N
Compatible Strap Coil Sizes	PP strap: ID 200 mm × Height 180 mm; PET strap: ID 406 mm × Height 150 mm

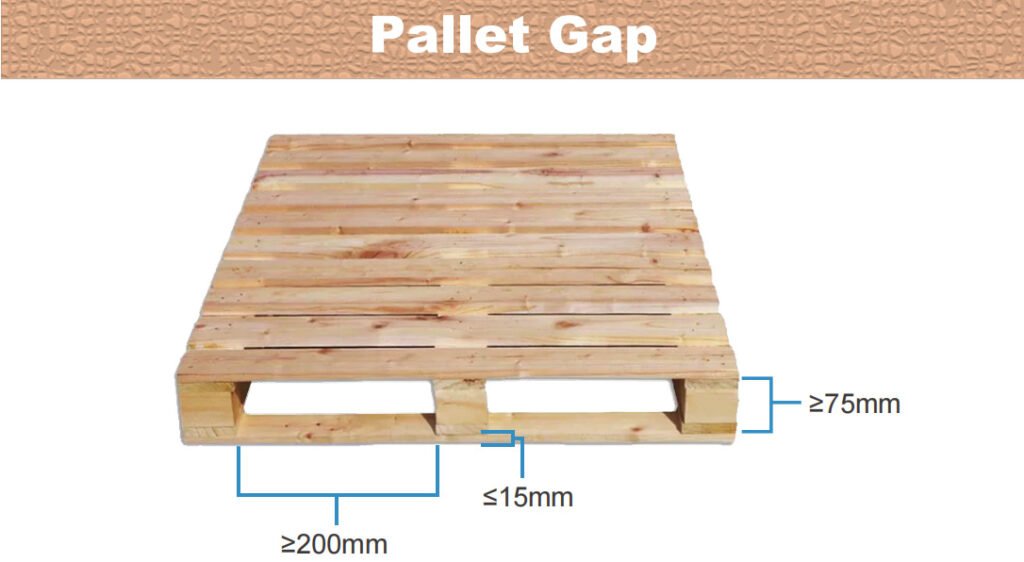

Min. Pallet Gap Height	75 mm
Min. Pallet Gap Width	200 mm
Noise Level	79 dB(A)
Max. Strap Speed (Standard Mode)	Horizontal Outfeed: 40 m/min; Vertical Outfeed: 60 m/min; Vertical Infeed: 44 m/min; Horizontal Infeed: 54 m/min
Max. Strap Speed (Chain Replacement Mode)	Outfeed: 20 m/min; Infeed: 16 m/min
