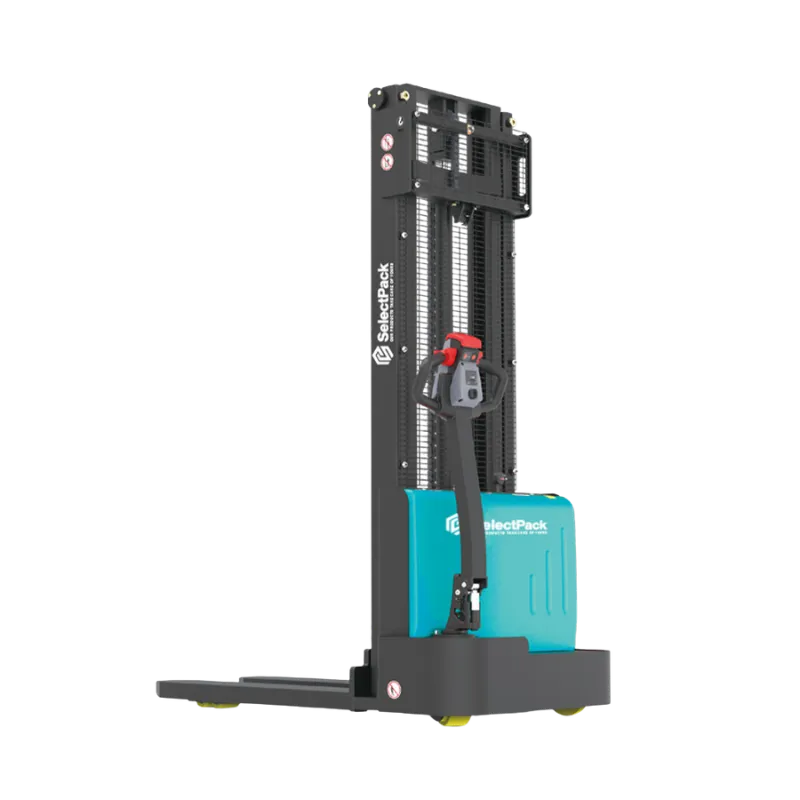

Maximize your space and efficiency with the GIRAFFE electric pallet stacker. Built for demanding warehouse tasks, this compact walkie stacker offers smooth control, strong lifting performance, and excellent reliability. Whether you’re replacing outdated gear or scaling up, GIRAFFE helps you move smarter.
| Item | Unit | Parameter | |
|---|---|---|---|
|
General Spec.
|
Brand
|
SELECTPACK
|
|
|
Model
|
Giraffe
|
||
|
Power Type
|
Electric
|
||
|
Operation Type
|
Walkie
|
||
|
Load Capacity
|
Q(kg)
|
1500
|
|
|
Load Center Distance
|
c(mm)
|
500
|
|
|
Fork Length
|
x(mm)
|
808
|
|
|
Wheelbase
|
y(mm)
|
1209
|
|
|
Weight
|
Service Weight (with Battery)
|
kg
|
550
|
|
Axle Load, Loaded (Drive / Load Wheel)
|
kg
|
912/1138
|
|
|
Axle Load, Unloaded (Drive / Load Wheel)
|
kg
|
449/101
|
|
|
Wheels / Chassis
|
Tire Type(Drive/Load)
|
PU/PU
|
|
|
Drive Wheel Szie (Diameter x Width)
|
mm
|
Ø210×70
|
|
|
Load Wheel Szie (Diameter x Width)
|
mm
|
Ø74×88
|
|
|
Caster Wheel Szie (Diameter x Width)
|
mm
|
Ø130×55
|
|
|
Number of Wheels (x = Drive Wheel, + = Caster / Load Wheel)
|
mm
|
1×+1/4
|
|
|
Track Width, Front (Drive End)
|
b10(mm)
|
616
|
|
|
Track Width, Rear (Load End)
|
b11(mm)
|
433
|
|
|
Dimensions
|
Lowered Mast Height
|
h1(mm)
|
1856
|
|
Maximum Lift Height
|
h3(mm)
|
2430
|
|
|
Extended Mast Height
|
h4(mm)
|
3071
|
|
|
Handle Height (Min / Max)
|
h14(mm)
|
750/1340
|
|
|
Lowered Fork Height
|
h13(mm)
|
90
|
|
|
Overall Length
|
l1(mm)
|
1700
|
|
|
Length to Fork Face
|
l2(mm)
|
526
|
|
|
Overall Width
|
b1(mm)
|
880
|
|
|
Fork Dimensions
|
s/e/l(mm)
|
60/190/1150
|
|
|
Load Backrest Width
|
b3(mm)
|
710/795
|
|
|
Fork Outside Spread
|
b5(mm)
|
570/600/685
|
|
|
Ground Clearance at Center of Wheelbase
|
m2(mm)
|
37
|
|
|
Aisle Width for 1200 × 1000 mm Pallet
|
Ast(mm)
|
2233
|
|
|
Aisle Width for 800 × 1000 mm Pallet
|
Ast(mm)
|
2148
|
|
|
Turning Radius
|
Wa(mm)
|
1392
|
|
|
Performance
|
Travel Speed, Laden / Unladen
|
km/h
|
3.7/4.0
|
|
Lifting Speed, Laden / Unladen
|
m/s
|
0.08/0.135
|
|
|
Lowering Speed, Laden / Unladen
|
m/s
|
0.105/0.097
|
|
|
Max Gradeability, Laden / Unladen
|
%
|
3/10
|
|
|
Service Brack Type
|
Electromagnetic
|
||
|
Drive & System
|
Drive Motor Rating S2 60 min
|
kW
|
0.75
|
|
Lift Motor Rating S3 15%
|
kW
|
2.2
|
|
|
Max Battery Dimensions
|
mm
|
260×165×170
|
|
|
Battery Voltage / Rated Capacity (K5)
|
k
|
2×12/85
|
|
|
Battery Weight
|
kg
|
2×19.6
|
|
|
Other
|
Driver Control Type
|
DC
|
| Mast Type | Lift Height h3+h13 (mm) | Lowered Mast Height h1 (mm) | Extended Mast Height h4 (mm) |
|---|---|---|---|
|
2-Stage Wide-View Mast
|
2513
|
1817
|
3032
|
|
2713
|
1917
|
3232
|
|
|
3013
|
2067
|
3532
|
|
|
3313
|
2217
|
3832
|
|
|
3613
|
2367
|
4132
|
